X Series : Explosion-Proof Types

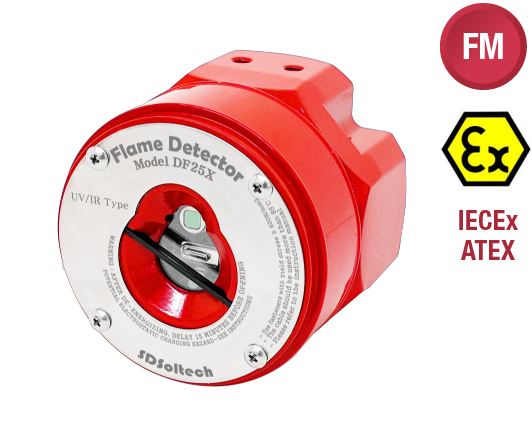

Dual Spectrum Flame Detector
Advanced Sensing & Control Technology
Enhanced hydrocarbon fire detection through dual-spectrum technology and advanced control
Wide sensing range and false alarm immunity.
Explosive Fire Rapid Analysis Detection
NO or NC selectable relay output
Wide operating voltage and compact size
By applying dual-spectrum technology(UV/IR) with fast and accurate detection, it provides wide detection distance and false alarm immunity.
In addition, it provides a structure that can be applied to environments in various industrial applications in harsh environments that require waterproof, dustproof and explosion-proof.
The structure, which is easy to install and maintain, provides customers with convenient use functions, and provides various output options to help them have excellent system compatibility.
| General | Detection Range | 50m (at 300×300 N-Heptane Real Test 50m) |
| Field of View | 100° (Horizontal, Vertical) | |
| Response Time | Typical 3 ~ 15sec | |
| Temperature Range/Humidity | -40°C ~ +80 °C (FM3260 : -50 ℃ ∼ +80 ℃), 0 ~ 95% non-condensing | |
| Electrical | Operating Voltage | 24Vdc nominal (19V~30Vdc), Power fault below 18 V, with normal fire detection maintained down to 10 V |
| Current Consumption | 35mA Standby (Inrush : 120mA, Alarm : 50mA) | |
| Current Consumption (Option) | 35mA Standby (Inrush : 120mA, Alarm : 50mA, Optical Self Test : 120mA, Heating : 300mA) | |
| Current for Power Supply Design | 120mA (Heating : 400mA) | |
| Cable Entries | 1×1/2” G(PF) typical (Option : NPT, M20)(Option : 2(3)×Entry) | |
| Mechanical | Size & Weight | 79×79×74mm, about 0.7kg |
| Material & Color | Aluminum, Red color | |
| Output | Relay Output | Alarm(normal Open), Fault(normal Close), Dry Contact, NC or NO changeable |
| Option Output | 0 ~ 20mA (Stepped, Source, 3Wire), RS485 | |
| Display (LED) | Normal (Green LED), Alarm (Red LED), Fault (Yellow LED) | |
| Approvals | Performance | FM3260 Approval |
| Explosion Proof | KCs : Ex db IIC T6/T5/T4 Gb , Ex tb IIIC T85℃/100℃/110℃ Db IECEx(Pending), ATEX(Pending) |
|
| Ingress Protection(Dust and Water) | IP66/67 |
