L Series : Standard Types

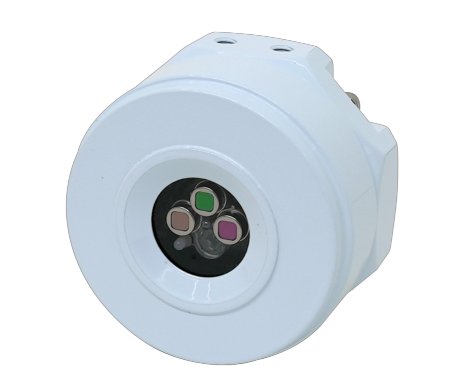

Triple Spectrum Flame Detector
Advanced Sensing & Control Technology
Enhanced hydrocarbon fire detection through triple-spectrum technology and advanced control
Wide sensing range and false alarm immunity
Explosive Fire Rapid Analysis Detection
NO or NC selectable relay output
Wide operating voltage and compact size
The multi-spectrum infrared flame detector with Triple-spectrum technology(IR3) is designed to have more advanced fire detection capability and false information detection by analyzing fire with three wavelengths.
In addition, it provides a structure that can be applied to environments in various industrial applications in harsh environments that require waterproof, dustproof.
In addition to that, it can provide various functions for compatibility with field systems.
| General | Detection Range | 50m (at 330×330 N-Heptane Real Test 60m) |
| Field of View | 100° (Horizontal, Vertical) | |
| Response Time | Typical 3 ~ 15sec | |
| Temperature Range/Humidity | -40°C ~ +80 °C, 0 ~ 95% non-condensing | |
| Electrical | Operating Voltage | 24Vdc nominal (19V~30Vdc), Power fault below 18 V, with normal fire detection maintained down to 10 V |
| Current Consumption | 25mA Standby (Inrush : 100mA, Alarm : 40mA) | |
| Current Consumption (Option) | 25mA Standby (Inrush : 100mA, Alarm : 40mA, Optical Self Test : 120mA) | |
| Current for Power Supply Design | 120mA (Option : 120mA) | |
| Cable Entries | 1×1/2” G(PF) typical | |
| Mechanical | Size & Weight | 79×79×89mm, about 0.5kg |
| Material & Color | Aluminum, Blue White | |
| Output | Relay Output | Alarm(normal Open), Fault(normal Close), Dry Contact, NC or NO changeable |
| Display (LED) | Normal (Green LED), Alarm (Red LED), Fault (Yellow LED) | |
| Approvals | Performance | KFI Approval |
| Ingress Protection(Dust and Water) | IP66/67 |
